Transversals and Parallel Lines: Definition, Angle Rules, Examples, and Practice

What is a transversal?

A transversal is a line that crosses two or more other lines.

The word is most useful when the two crossed lines are parallel.

When a transversal crosses parallel lines, it creates repeated angle positions that can help you find missing angles.

Why parallel lines matter

A transversal can cross any two lines, but the special angle rules need the crossed lines to be parallel.

If you only need the basic meaning of parallel lines, start with the Grade 4 lesson on parallel lines.

On this page, we use parallel lines to explain the angle patterns made by a transversal.

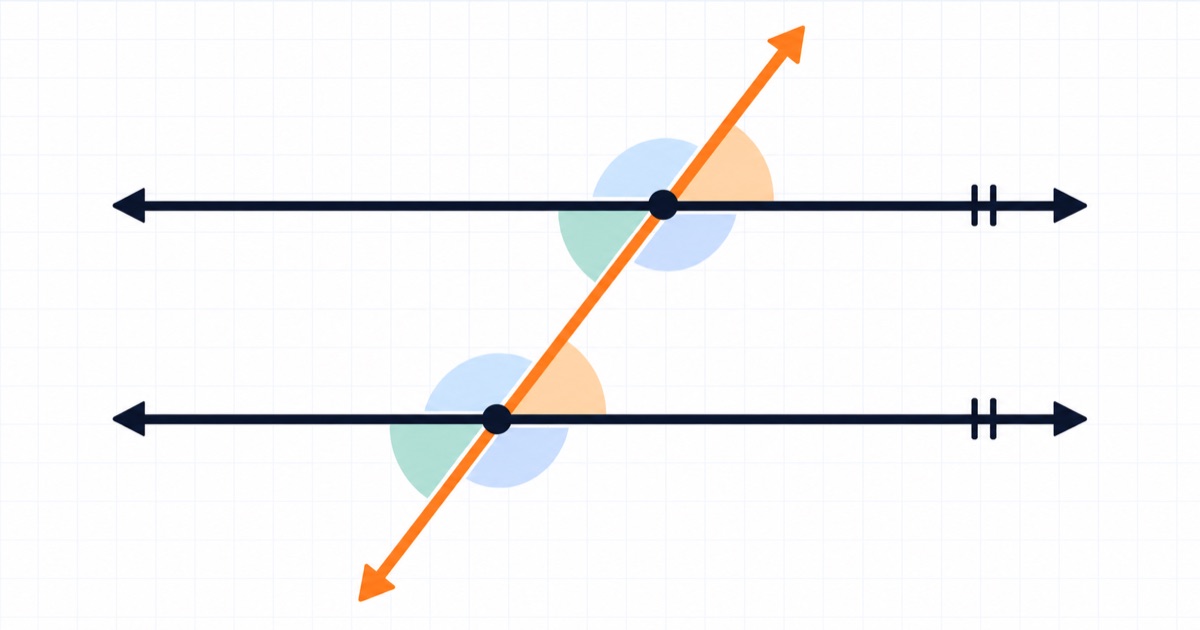

Transversal setup

The diagram has two parallel lines and one orange transversal.

The transversal makes two crossing points.

Each crossing point creates four angles, so the whole setup gives eight angles to compare.

Important words

The crossed lines are the two lines the transversal passes through.

Interior angles are between the two crossed lines.

Exterior angles are outside the two crossed lines.

Same side means two angles are on the same side of the transversal. Opposite side means they are on different sides of the transversal.

Angle rules made by parallel lines

These are the main angle relationships students use after a transversal crosses parallel lines.

Corresponding angles sit in matching positions, so they are equal when the lines are parallel.

Z angles, also called alternate interior angles, sit inside the parallel lines on opposite sides of the transversal, so they are equal.

Consecutive interior angles, also called same-side interior angles, sit inside the parallel lines on the same side of the transversal, so they add to 180°.

How to solve a transversal question

Step 1: Find the transversal. It is the line that crosses the other lines.

Step 2: Check that the crossed lines are marked parallel or the question says they are parallel.

Step 3: Decide the angle pair: matching position, Z shape, or same-side interior.

Step 4: Use the rule: equal angles stay equal; same-side interior angles add to 180°.

Worked examples

Example 1: Two parallel lines are cut by a transversal. One corresponding angle is 64°. The matching corresponding angle is also 64°.

Example 2: One same-side interior angle is 118°. The other same-side interior angle is 180° - 118° = 62°.

Example 3: One Z angle is 73°. The other Z angle is also 73° because alternate interior angles are equal with parallel lines.

When the lines are not parallel

The line crossing the diagram is still a transversal, even if the crossed lines are not parallel.

The position names still exist, but the equal-angle and 180° rules are not guaranteed.

If a diagram does not mark the two lines as parallel, do not assume the transversal angle rules apply.

Common mistakes

Do not call the two parallel lines transversals. The transversal is the crossing line.

Do not use the equal-angle rule until you check that the crossed lines are parallel.

Do not mix up same-side interior angles with Z angles. Same-side interior angles add to 180°, while Z angles are equal.

Do not choose two angles at the same intersection when a rule asks for corresponding or alternate interior angles; those use two different crossings.

Quick practice

1. A transversal crosses two or more lines.

2. Parallel marks tell you the crossed lines stay the same direction.

3. Corresponding angles on parallel lines are equal.

4. Alternate interior angles, or Z angles, on parallel lines are equal.

5. Same-side interior angles on parallel lines add to 180°.
