Corresponding Angles: Definition, Examples, Chart, and Practice

What are corresponding angles?

Corresponding angles are angles in matching positions when a line crosses two other lines.

The crossing line is called a transversal.

When the two crossed lines are parallel lines, corresponding angles have equal measures.

Corresponding angles rule

Use this rule when two parallel lines are cut by a transversal.

Corresponding angles are equal when the lines are parallel.

The angles are not opposite at the same crossing. They sit in the same position at different crossings.

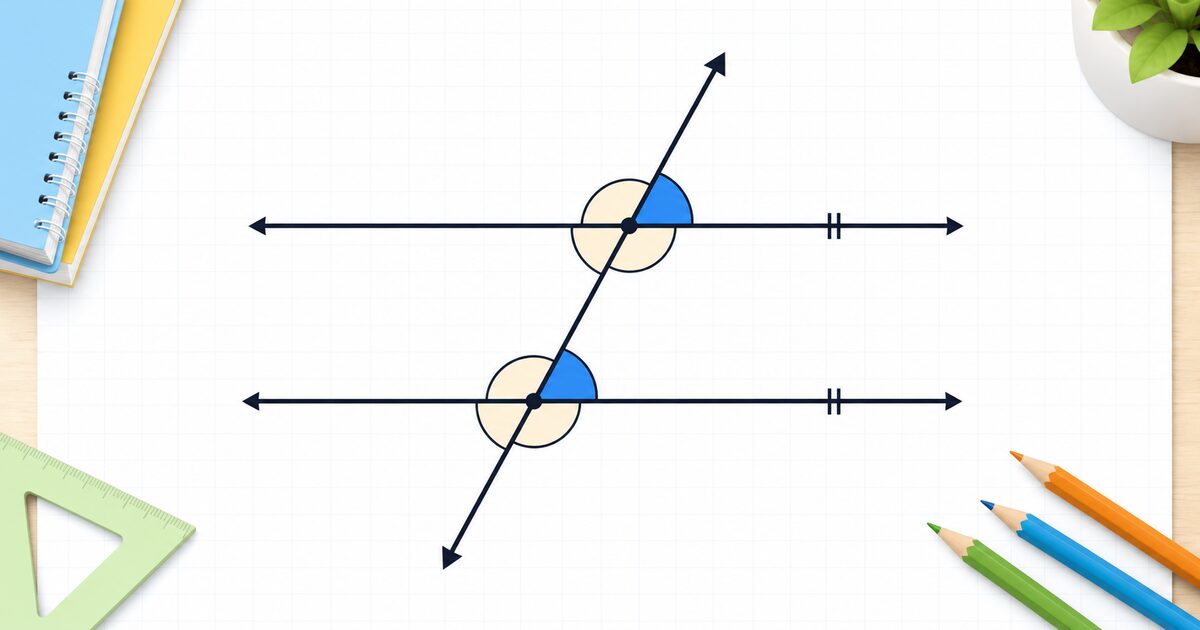

Corresponding angles chart

The chart shows how to look for matching positions.

Each pair is found at a different crossing, but the angle sits in the same corner position.

How to find corresponding angles

Step 1: Find the transversal, the line that crosses the other two lines.

Step 2: Pick an angle at the first crossing.

Step 3: Look at the second crossing and choose the angle in the same position.

If the two crossed lines are parallel, the corresponding angles are equal.

Worked example

Problem: Two parallel lines are cut by a transversal. One corresponding angle is 74°. What is the matching corresponding angle?

Step 1: The lines are parallel.

Step 2: Corresponding angles are equal when the lines are parallel.

Answer: The matching angle is 74°.

When the lines are not parallel

Corresponding angles still have matching positions, but they are not guaranteed to be equal unless the lines are parallel.

If a problem says the lines are parallel, you can use equality. If it does not say the lines are parallel, do not assume the measures match.

Corresponding angles with algebra

If two parallel lines are cut by a transversal, corresponding angle expressions can be set equal.

Example: one corresponding angle is 3x + 12 and the matching angle is 78°.

Write 3x + 12 = 78. Then 3x = 66, so x = 22.

Real-life corresponding angle examples

A road crossing two parallel streets can make corresponding angle positions.

A ladder crossing two parallel shelf edges can make matching angles.

Parallel notebook lines crossed by a drawn slanted line can also show corresponding angles.

Common mistakes

Do not choose an angle at the same crossing. Corresponding angles are at different crossings.

Do not choose the opposite angle at one crossing; that is a vertical angle idea, not the corresponding-angle position.

If the pair is inside the parallel lines and switches sides of the transversal, it may be a Z angle, or alternate interior angle, instead.

Do not say corresponding angles are equal unless the lines are parallel.

Quick practice

1. If corresponding angles are made by parallel lines and one is 55°, the matching angle is 55°.

2. If the matching corresponding angle is 112°, the other corresponding angle is 112°.

3. If one corresponding angle is x and the matching angle is 69°, then x = 69°.

4. If the lines are not marked parallel, do not assume corresponding angles are equal.
